Embodiment: skills, vision & hardware

This page covers the robot-specific half of the stack: the kcare_robot skill set, the perception-and-grasp pipeline, the VisionServe GPU server, and the ROS2 hardware — all reached through the pyconnect transport.

The embodiment stack (export diagram_body.drawio → images/diag_embodiment.png).

The skill contract

Every skill is a plain function skill(node, **params) -> dict that returns a planner-readable result, at minimum {isdone: bool, msg: str}. Skills are stateless; all device access goes through node.agents[...] (never raw ROS). SkillRegistry.execute dispatches either an internal skill (a module:function pair) or an external one (an HTTP endpoint), returning the same result shape so the verifier treats them identically.

Skill groups

Group	Skills
Navigation	move · moveb (Nav2) · forward · turn · rotate · mobile_pose
Perception	find · detect · find_arm · get3d · grasp_succeed · inform
Manipulation	pick · place · placeat · open_drawer · close_drawer · wipe · stack (fine_move self-correction)
Low-level	arm (movej / movel / movet) · lift · head (moveh) · grip

The full per-skill reference — prompt usage, dev usage and input syntax — is in Manual.

Perception & grasp pipeline

The interesting work happens inside the Perception skills. A typical find / grasp resolves through these stages:

1. Fetch RGB-D — fetch_camera_data reads the head (Femto Bolt) or wrist (RealSense D405) camera via node.agents[...].

2. Detect — VisionServe.predict(model, rgb, prompt=...) runs an open-vocabulary model (grounding-dino for boxes, grounded-sam for masks, grasp-gd for grasp poses).

3. Select — select_target_object / select_target_grasp pick the best detection by quality / proximity.

4. Lift to 3D — get3d (the /create_object_marker ROS service) and the head-to-base calibration project the pixel target into the base frame.

5. Result — a dict ins{ loc_3d, pose_3d, grasppose:[x,y,z,rz,w], box, score, ... } that drives pick / fine_move.

Two real runs, as seen by the robot’s own cameras (all overlays are produced live by the pipeline):

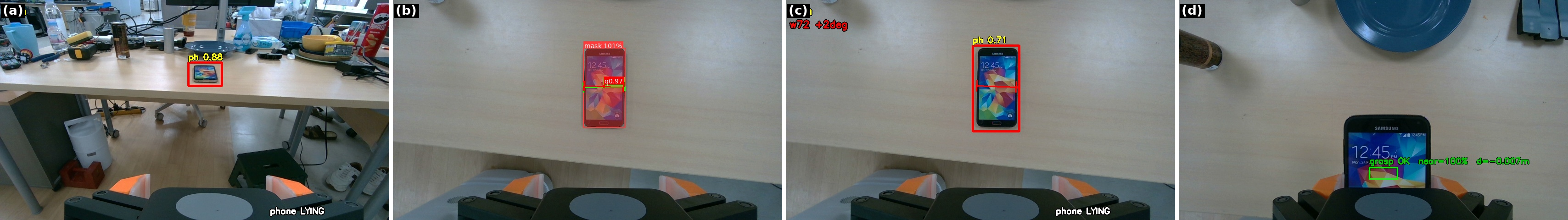

pick the phone: (a) head camera detects the phone on the table (ph 0.88, pose LYING); (b) wrist camera segments it and scores a grasp candidate (q0.97); (c) fine_move aligns the gripper (width 72 mm, +2°); (d) the grasp check passes (grasp OK, near=100%).

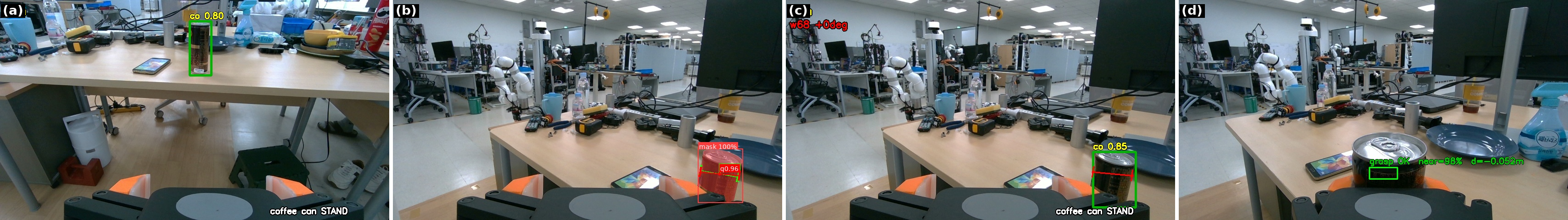

pick the coffee can: the same detect → segment → align → verify sequence on a standing can (co 0.80, q0.96, width 68 mm, grasp OK, near=98%).

The corresponding external-webcam videos of both runs are embedded on Architecture.

VisionServe — GPU inference server

VisionServe is a separate process (typically on a GPU machine) that the robot reaches over TCP/HTTP at :11435:

• Models: GroundingDINO (boxes), GroundedSAM (masks), grasp-gd (grasp poses), plus a generic detector.

• Request: an RGB image + a text prompt; response: detections / masks / grasps with scores, plus inference device and timing.

• Client: _vs_client().predict(model, rgb, prompt=...) wraps the call; the connection is registered in connections.json (see Configuration).

Because vision runs out-of-process, the robot PC stays light and the GPU box can serve several robots.

Robot hardware (ROS2)

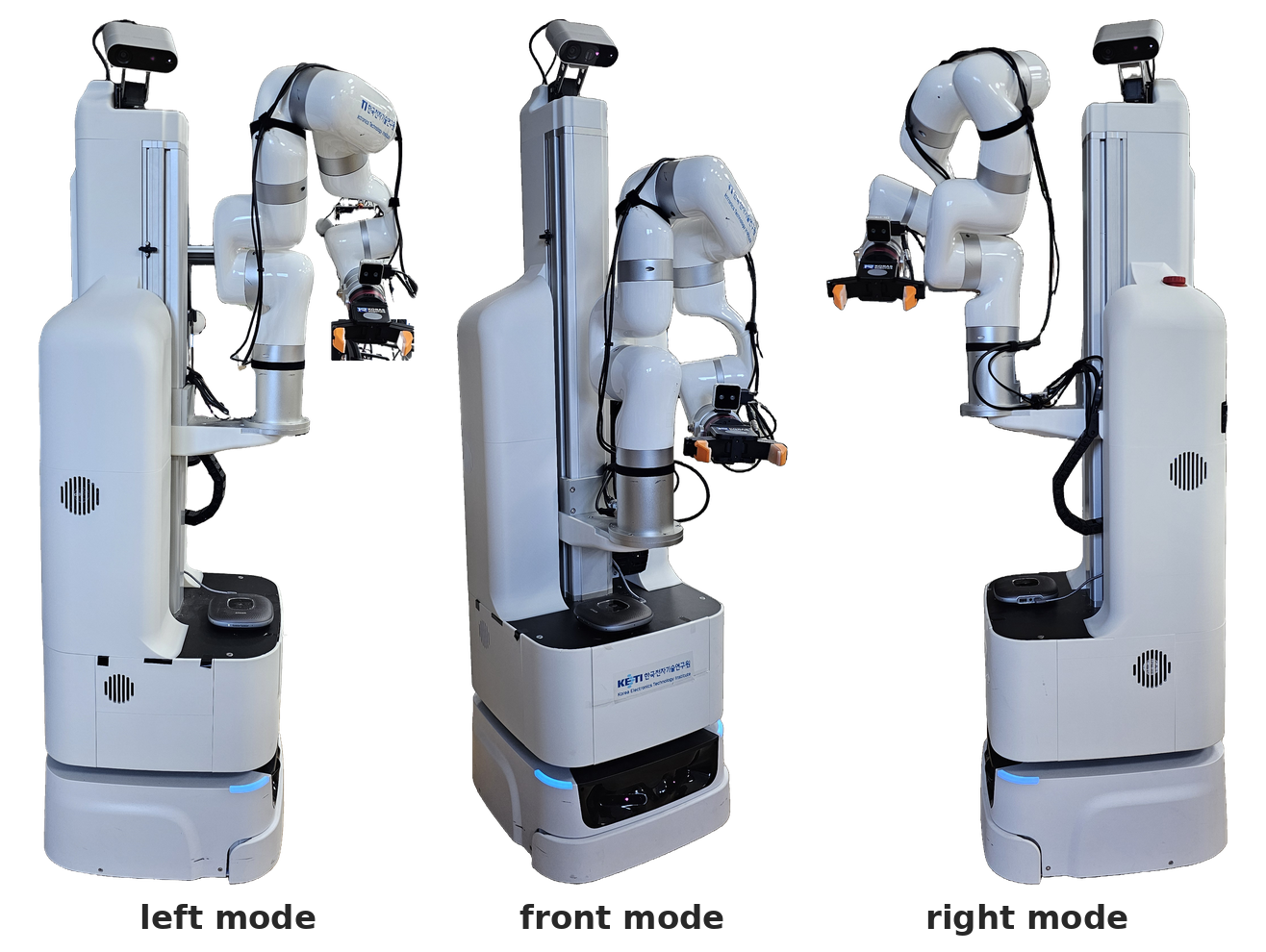

The real robot in its three arm-mount configurations — left, front and right mode. The KAAIR arm rides the vertical lift rail; the head camera sits on the pan-tilt mast.

kcare_robot targets a mobile manipulator wired through ROS2 actions, services and topics, each wrapped as a pyconnect agent:

Subsystem	ROS2 interface (examples)
KAAIR 6-DOF arm	/kaair_worker/arm_moveJ · arm_moveL · arm_moveT (action)
Lift / elevator	/kaair_worker/lift_move (action)
Gripper (2-finger + suction)	/body/tool_controller/gripper_cmd (action)
Pan-tilt head	/kaair_worker/head_move (action)
Mobile base	/navigate_to_pose (Nav2 action) · /mobile/shift_pose · /mobile/rotate (services)
Cameras	D405 wrist + Femto Bolt head RGB-D (compressed image topics) · camera-info
3D / poses	/create_object_marker (service) · /robot_pose/* (topics)

A head-to-base calibration (intrinsics + a transform chain with per-mode error corrections) projects detections from the head camera into the base frame; the wrist camera provides the close-range frames for fine_move grasping.

For how devices are declared and swapped per site, see Configuration; for the pyconnect node/agent framework itself, see ROS2-based Framework.
