Cognition: planning & verification

This page goes one level deeper than Architecture into the robot-agnostic half of the stack: the closed-loop driver, the persistent world state, the layered verifier, and the SAGE planner reached through a decoupled planner protocol. All of this lives in robot_agent and pyplanner and knows nothing about a specific robot.

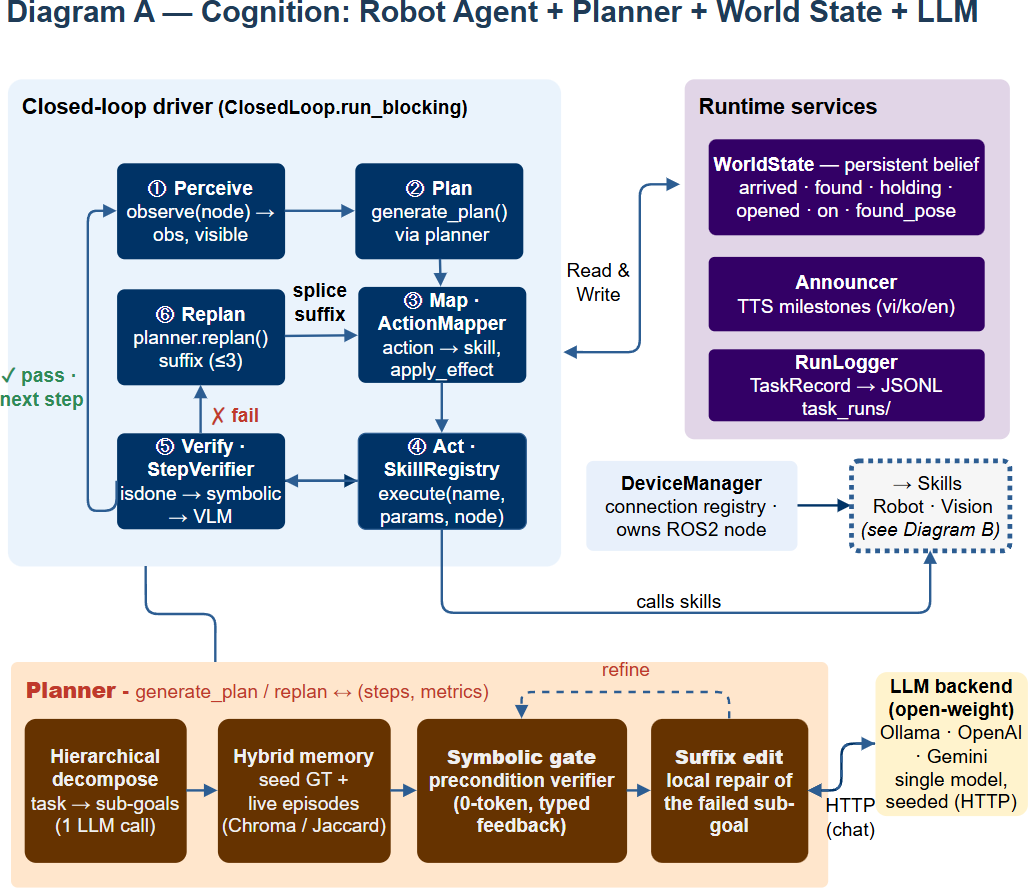

The cognition stack (export diagram_brain.drawio → images/diag_cognition.png).

The closed loop

ClosedLoop.run_blocking (in robot_agent) executes a plan as a bounded replanning loop rather than firing a fixed script. Per step:

1. Perceive — observe(node) returns a short observation string and the list of currently visible objects; the world belief is reconciled from localization first (see WorldState below).

2. Plan — the planner returns (steps, metrics) via generate_plan.

3. Map — ActionMapper turns the symbolic step into a concrete (skill_name, params) pair, or marks it a no-op, or raises Unmappable.

4. Act — SkillRegistry.execute(name, params, node) runs the skill and returns a result dict {isdone, msg, ...}.

5. Verify — StepVerifier checks the result in up to three layers.

6. Update or replan — on success the belief is updated (apply_effect) and persisted; on failure the planner produces a suffix that is spliced after the completed prefix. Replans are bounded (default 3).

Every milestone is streamed as an event over the agent WebSocket and appended to a per-run JSONL log, so a run is fully replayable.

WorldState — the robot’s belief

WorldState is a small symbolic dataclass the robot carries across runs, persisted to world_state.json and editable live from the dashboard:

Field	Kind	Meaning
arrived	sensor	nearest configured location, reconciled from localization
found	belief	object most recently located (not yet grasped)
holding	belief	object currently believed to be grasped (no gripper sensor)
opened / on	belief	sets of open containers / switched-on appliances
holding_since	belief	epoch seconds the grasp belief was set
found_pose	geometry	3D memory of the found object in the base frame at detection time

found_pose is flagged stale once the base moves > 0.25 m from the detection spot; it must not be trusted for grasping after that. The belief is read with GET /agent/world and partially updated with PUT /agent/world (only the fields sent), which is safe even mid-run.

Mapping symbolic actions to skills

ActionMapper is constructed with a robot-specific name map (grace_namemap for kcare). It never hard-codes locations, objects or skills:

• to_loc / to_obj translate planner names to the robot’s vocabulary.

• SKILL_MAP maps a planner action (e.g. MoveTo, Pick, Open) to a kcare skill (move, pick, open_drawer …).

• SUPPORTED_ACTIONS / NOOP_ACTIONS / VLM_ACTIONS declare what this robot can execute, what to skip silently, and what gets a vision check.

• apply_effect mirrors the symbolic effects onto WorldState after a verified step (e.g. Pick moves found → holding).

An action with no executable skill on this robot raises Unmappable and is reported, rather than failing silently.

Layered verification

StepVerifier checks each executed step cheapest-first and stops at the first failure:

1. isdone — did the skill itself report success? (0 tokens)

2. symbolic — do the step’s preconditions/effects hold against a copy of the world? (0 tokens; never mutates the real belief)

3. VLM — optional vision-language check for actions in VLM_ACTIONS (Pick, Place, PutIn, Open, Close). Wrapped in a never-fail guard so a broken perception check is recorded but cannot stall the loop.

The verdict is OK only if every layer that ran passed; the first failing layer’s reason drives the replan.

SAGE planner via the Planner Protocol

Planning is decoupled behind a small Planner protocol. get_planner selects a backend by name:

• grace → GraceBackend, which wraps pyplanner’s SAGE planner.

• llm_direct → a legacy single-call backend.

SAGE (the system’s algorithmic contribution) combines four lightweight mechanisms over a single open-weight model:

• Hierarchical decomposition — task → sub-goals → steps.

• Hybrid memory — retrieves few-shot examples from a curated seed set plus successful live episodes (Chroma embeddings, Jaccard fallback).

• Symbolic gate — a zero-token precondition verifier that rejects invalid steps and feeds typed feedback back to the model before execution.

• Suffix-only repair — on failure it regenerates only the failed sub-goal’s remaining steps, recovering with roughly 2.4–3.3× fewer LLM calls than whole-plan replanning (see the SAGE paper).

Note

📷 Screenshot slot — add images/shot_plan_panel.png (the dashboard’s Robot State + plan/timeline panel) to show planning live.

The dashboard renders the world belief, the generated plan, and a live step-by-step execution timeline driven by these events.

The LLM backend

The planner talks to a single, seeded open-weight model over HTTP — Ollama (local, e.g. qwen2.5:7b), OpenAI, or Gemini. Provider and model are set from POST /agent/llm-config; API keys via POST /agent/api-key. Running locally with Ollama keeps the whole stack on-premise.

The event stream

Both the closed-loop and the direct paths emit events over /ws/agent: task_start, plan, step_start, step_done, step_log, replan, world (a fresh WorldState snapshot), and done / error. The dashboard subscribes to this stream; the same events are persisted to task_runs/<run_id>.jsonl.
