Overview

The care robot is an assistive mobile manipulator that turns a spoken or typed request (“bring me the cup from the table”) into a sequence of real robot actions, checks each step, and repairs the plan on the fly when something goes wrong. It is built as a robot-agnostic runtime (robot_agent) driving a concrete robot package (kcare_robot), with an optional multi-user web dashboard (robotapp) and a pluggable LLM task planner (pyplanner / SAGE).

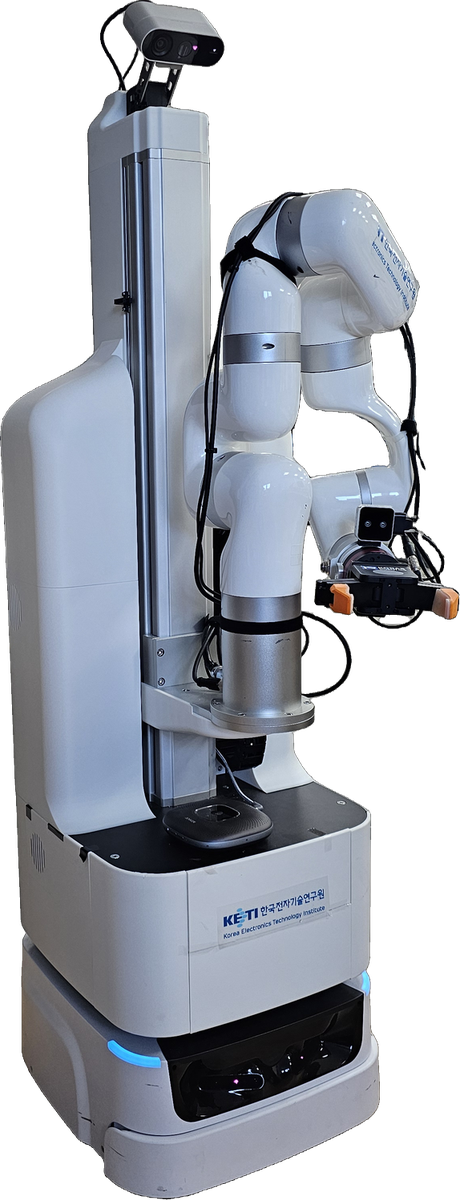

The care robot: KAAIR 6-DOF arm + lift on a mobile base, two-finger/suction gripper, pan-tilt head, and wrist + head RGB-D cameras.

See it in action — two real manipulation runs recorded from an external webcam (pick the phone and pick the coffee can):

Three operating modes

The same robot can be driven three ways — they all reach the same skills through the same registry, so behaviour is identical:

Mode	Entry point	Talks to
UI / HTTP	robotapp dashboard	robot_agent FastAPI over HTTP / WebSocket
CLI	<pkg> name::inputs	bootstraps the robot in-process
Python API	kcare_robot.skills.*	bootstraps the robot in-process

The dashboard is optional: the robot is fully operable from the CLI or Python API. Two clients driving the same robot at once is unsafe — the UI documents this for operators.

System overview

At a glance, a command flows top-down from the operator to the hardware and feeds back up through verification and voice:

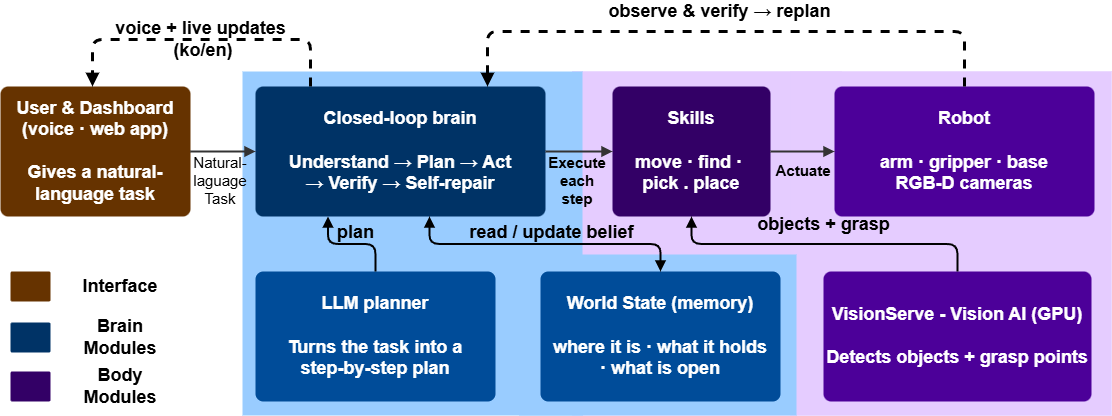

High-level flow: User → robot_agent brain (understand → plan → act → verify → self-repair) → skills → VisionServe + robot, with the SAGE planner and world-state memory feeding the brain.

The system splits cleanly into two halves, each with its own detailed diagram and page:

• the robot-agnostic cognition half (closed-loop driver, world state, verifier, SAGE planner and LLM) — see Cognition: planning & verification;

• the robot-specific embodiment half (skills, perception/grasp pipeline, VisionServe and the ROS2 hardware over pyconnect) — see Embodiment: skills, vision & hardware.

Together they span six tiers: interaction (dashboard/CLI/API) · robot_agent runtime · pyplanner/SAGE + LLM backend · kcare_robot skills · pyconnect transport · external processes (VisionServe GPU server and the ROS2 hardware).

Cognition: the closed-loop brain

robot_agent runs a bounded closed loop rather than executing a fixed plan blindly. Each step is perceived, mapped to a skill, executed, and verified; on failure the planner repairs only the failed sub-goal’s suffix.

UnifiedAgent → ClosedLoop (Perceive → Plan → Map · ActionMapper → Act · SkillRegistry → Verify · StepVerifier; ✓ pass advances, ✗ fail triggers Replan) with WorldState, Announcer and RunLogger, backed by SAGE over the Planner Protocol.

Key pieces:

• WorldState — a persistent symbolic belief the robot carries across runs: arrived · found · holding · opened · on · found_pose. Only arrived is sensor-derived; the rest are beliefs (no gripper sensor).

• Layered verification (StepVerifier) — cheap to expensive: isdone (did the skill report success?) → symbolic (do the step’s preconditions/effects hold?) → VLM (optional vision check). A never-fail guard keeps a broken vision check from stalling the loop.

• SAGE planner (pyplanner) — the paper’s contribution, reached through a decoupled Planner Protocol (get_planner): hierarchical decomposition, hybrid memory (curated seed + live episodes, Chroma/Jaccard), a zero-token symbolic gate that verifies steps before execution, and suffix-only repair that regenerates just the failed sub-goal — recovering from failures with far fewer LLM calls than whole-plan replanning.

• LLM backend — a single open-weight model (Ollama / OpenAI / Gemini) over HTTP, seeded for reproducibility.

Embodiment: skills, vision, hardware

The robot-specific half lives in kcare_robot (skills + name map + per-site configs), reaching hardware through pyconnect and a separate GPU vision server.

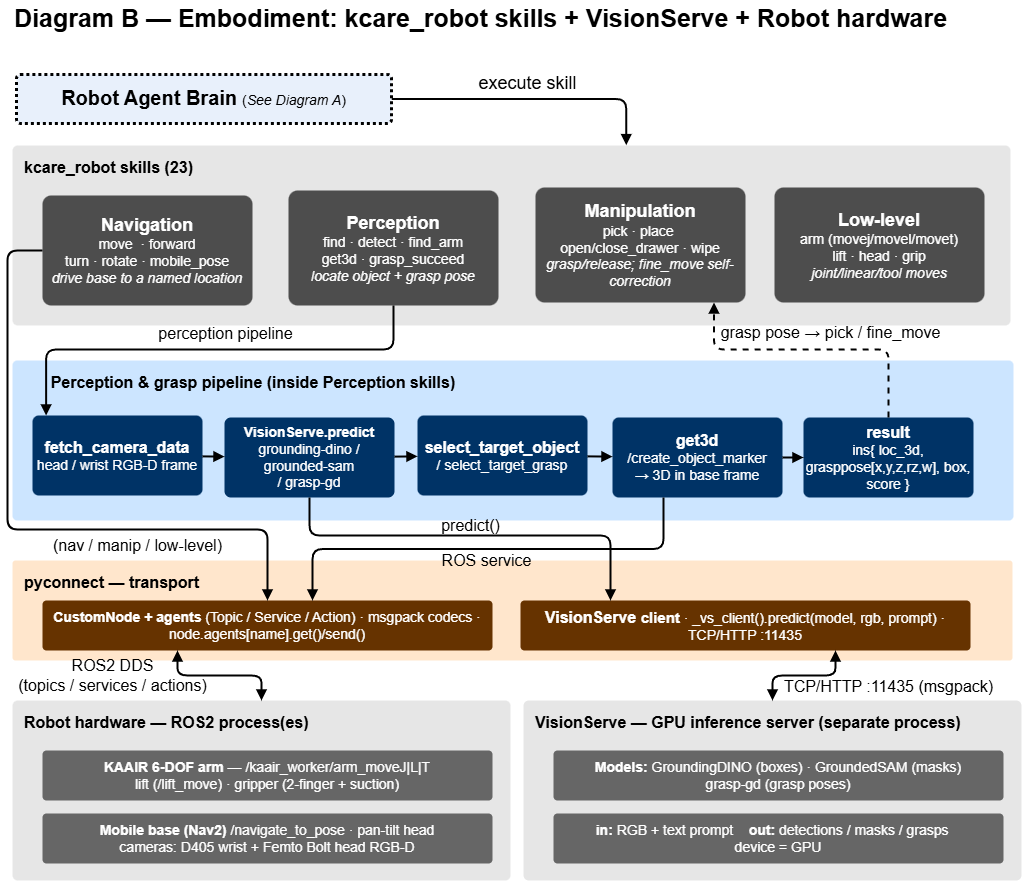

23 skills (Navigation / Perception / Manipulation / Low-level), the perception-and-grasp pipeline, pyconnect transport, the VisionServe GPU server, and the ROS2 robot hardware.

• Skills — grouped as Navigation (move, Nav2 moveb, turn …), Perception (find, detect, get3d, grasp_succeed), Manipulation (pick, place, open_drawer …, with fine_move self-correction), and Low-level (arm/lift/head/grip).

• Perception & grasp pipeline — fetch_camera_data (head/wrist RGB-D) → VisionServe.predict (GroundingDINO / GroundedSAM / grasp-gd) → select_target_* → get3d (/create_object_marker) → a 3D result ins{loc_3d, grasppose, box, score} that drives the grasp.

• VisionServe — a separate GPU process the robot talks to over TCP/HTTP :11435; in: RGB + text prompt, out: detections / masks / grasps.

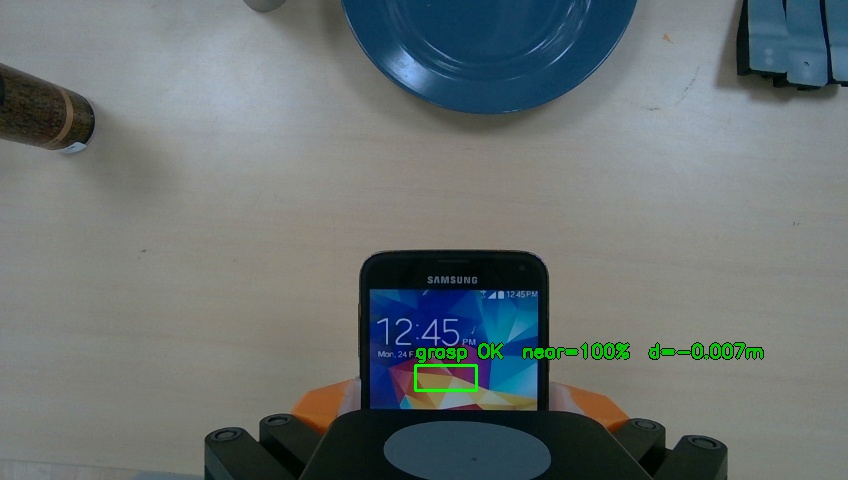

Wrist-camera view at the end of a fine_move approach: the grasp check reports grasp OK, near=100%, d=-0.007m just before closing the gripper.

Walkthrough: one command, end to end

“Bring me the cup from the table”:

1. Dashboard / CLI sends the natural-language task to robot_agent.

2. UnifiedAgent translates (vi/ko → en) and starts the ClosedLoop.

3. Perceive reconciles WorldState from localization and observes the scene.

4. Plan — SAGE returns steps (MoveTo Table → Find Cup → Pick → MoveTo User → Place).

5. For each step: Map to a skill (ActionMapper) → Act (SkillRegistry.execute) → Verify (StepVerifier).

6. On success the belief updates and the loop advances; the Announcer speaks a milestone and RunLogger appends a JSONL record. On failure, Replan splices a repaired suffix and execution continues.

Note

🎥 Optional video slot — drop _static/videos/demo_full_task.mp4 (also used at the top of this page) to show this walkthrough on the real robot.

Where to go next

• Get started — install and run the stack.

• Manual — the full skill reference.

• ROS2-based Framework — the pyconnect ROS2 node framework.

• Examples — minimal, copy-paste code samples.
